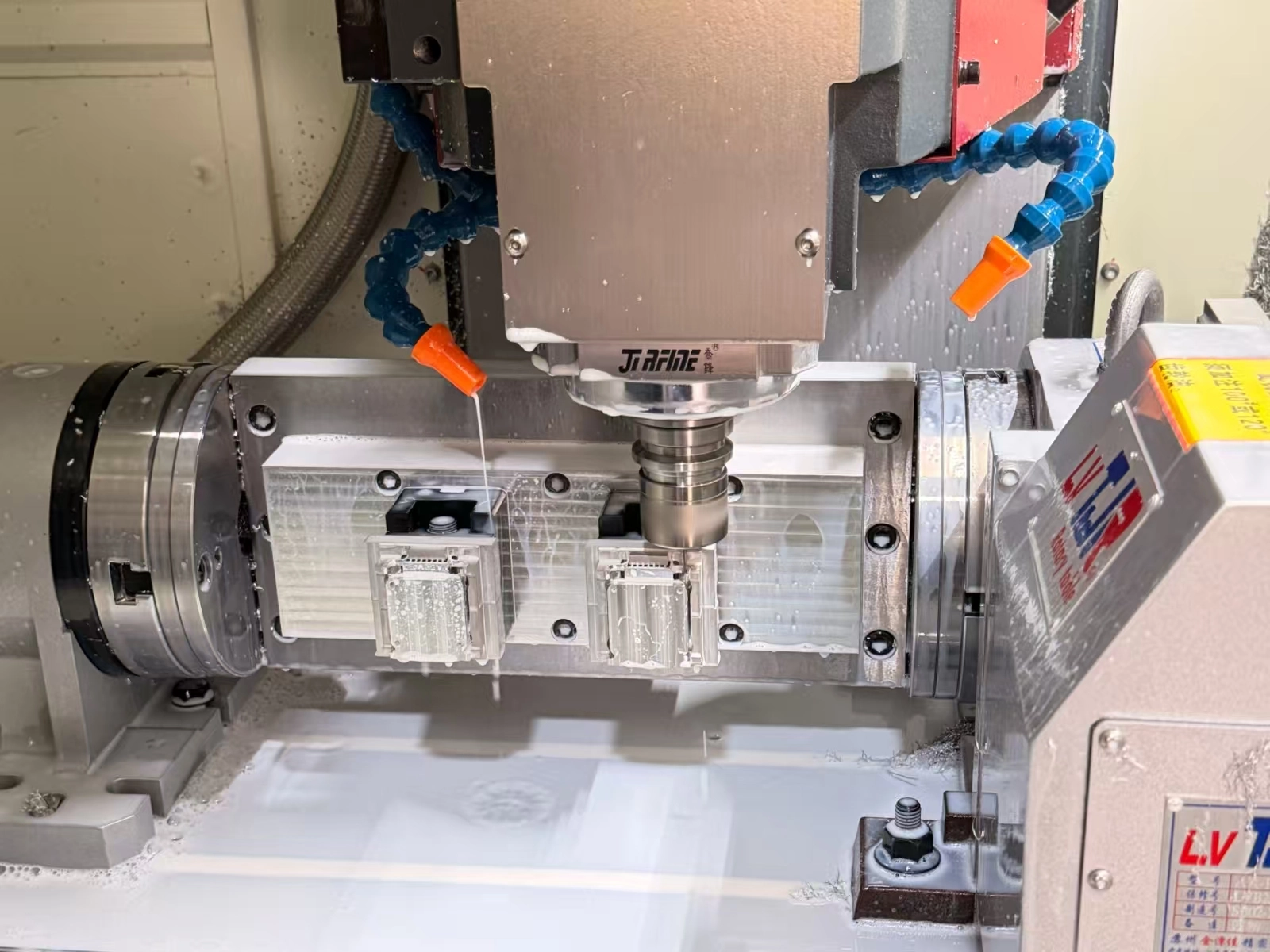

Custom CNC Machining Services

How It Works: The Data-Driven Manufacturing Chain

Design (CAD): Engineers create a 3D digital model of the part using Computer-Aided Design software.

Programming (CAM): The CAD model is translated into G-code instructions that the machine tool can understand, using Computer-Aided Manufacturing software. This process involves setting critical parameters like tool paths, cutting speeds, and feed rates.

Setup: The operator mounts the workpiece, installs the cutting tools on the machine, and loads or calls up the machining program.

Execution & Monitoring: The CNC system interprets the G-code, precisely controlling the movement of the machine’s axes and auxiliary functions (e.g., coolant, tool changes) to complete the cutting automatically. The operator monitors the process to ensure stability.

Completion: After machining, the part is removed for necessary post-processing (e.g., deburring, surface treatment) and quality inspection.

Complete Explanation of Main CNC Machining Processes

1.1 CNC Machining Control System Architecture

Multi-Axis Linkage CNC Machining: Precise coordinated control from 3-axis to 12-axis for machining complex surfaces.

CNC Servo Drive Technology: Full closed-loop feedback system with optical scales achieving positioning accuracy up to ±0.001 mm.

CNC Real-time Interpolation Algorithms: Linear, circular, and spline interpolation algorithms ensuring smooth CNC motion.

1.2 CNC Turning Process System

CNC Facing: Precise axial dimension control.

CNC External Turning: Precise diameter tolerance control.

CNC Threading: Metric/Imperial/Taper thread CNC machining.

CNC Deep Hole Machining: CNC deep hole drilling/boring with depth-to-diameter ratio >10.

Intelligent CNC Machining Technology

CNC Adaptive Control: Real-time optimization based on cutting force signals.

CNC Tool Condition Monitoring: Predictive CNC tool management.

CNC Thermal Error Compensation: Multi-point temperature sensing compensation system.

CNC Digital Twin: Virtual CNC debugging and optimization.

Core Advantages: Why It’s the Preferred Choice in Modern Manufacturing

Extremely High Precision & Consistency: Easily achieves micron-level tolerances, with near-identical parts in batch production.

Exceptional Ability to Machine Complex Shapes: Capable of producing intricate 3D geometries impossible with manual or conventional machines.

Superior Efficiency & Productivity: Enables 24/7 automated operation, drastically reducing manual intervention and per-part cycle times.

Great Flexibility: Switching to a different program allows for the machining of different parts, making it ideal for small to medium batch, high-mix production.

Enhanced Safety: Operators work away from the cutting area, significantly reducing the risk of workplace injuries.

Why choose us for CNC Machining?

1.High Precision, Good Consistency

One of the most significant advantages of CNC machining in our factory compared to manual machining is precision. Without the constant attention of a skilled operator, once programmed, CNC machines are able to maintain a high degree of consistent part quality in mass production.

2.Efficiency And Productivity

One of the advantages of CNC machining at ANXIN is that it is faster. In the use of CNC machine tools, because CNC machine tools can be mass-produced 24 hours without fatigue, the operator can be more efficient.

3.Flexibility And Adaptability

The CNC machining in ANXIN’s factory can complete any mechanical part you can think of, just be able to give the product drawings, they are different from the traditional machine production process, because the CNC machine can be programmed to adapt to different design requirements or production tasks, so its products are very adaptable

4.More Detailed Processing

The CNC machining at the ANXIN’s plant can achieve very fine tolerances and is suitable for high-precision engineering requirements. It can also be machined to a smooth surface, reducing the need for subsequent finishing.

Key Application Industries

Aerospace: Engine components, landing gear, airframe structures (requirements: high strength, lightweight, high reliability).

CNC Engine Components: 5-axis simultaneous precision machining.

CNC Blade Manufacturing: Complex surface CNC machining.

Automotive Industry: Prototyping, engine blocks, transmission gears, high-performance custom parts.

Medical Devices: Surgical instruments, orthopedic implants, dental prosthetics (requirements: biocompatibility, ultra-high precision).

CNC Implant Manufacturing: Biocompatible surface finishing.

CNC Surgical Instruments: Precision edge CNC machining.

Mold & Die Making: The core process for creating injection molds, die-casting molds, stamping dies.

Electronics & Telecommunications: Precision connectors, heat sinks, chip packaging molds.

Energy Equipment: Turbine blades, valves, complex pump housings.

Material Selection Decision on CNC Machining

AT offers a wide variety of materials for custom CNC machining,  plastic, and metal, including but not limited to:

Aluminum: 6061-T6, 7075-T6, 2024, 5052, 6060, 5083, 2017, 6082

Aluminum’s strength-to-weight ratio, affordability, and recyclability have made it widely used across industries worldwide.

Stainless Steel/Alloy Steel/Tool Steel/Brass/Copper/Titanium

Finishing Options: Anodizing Types II, III, III + PTFE, ENP, Media Blasting, Nickel Plating, Powder Coating, Tumble Polishing

POM(Delrin/Acetal): High stiffness, good moisture resistance, high wear-resistance, and low friction, easy to machine

PMMA (Acrylic):Color:(White, black, brown etc.)

PEEK: Grade: POM-C, POM-H, UV stabilized POM, Food-Grade POM

ABS/Nylon (PA)/PTFE (Teflon)/PVC

When selecting materials for CNC machining, a comprehensive trade-off is needed from three dimensions: functionality, machinability, and economy.

From the functionality requirement dimension, it is necessary to evaluate the material’s strength requirements (including static strength and dynamic fatigue strength), wear resistance requirements (often related to surface hardness), corrosion resistance (for specific working environment media), operating temperature range, and electrical properties like conductivity and thermal conductivity.

From the machinability dimension, the material’s machining difficulty level (can be divided into levels 1 to 5), tool cost index, machining efficiency coefficient, achievable surface quality, and difficulty of deformation control need to be considered.

From the economic dimension, calculations should include the cost per kilogram of the material itself, estimated machining labor hours, tool consumption costs, necessary heat treatment or other post-processing costs, and an estimation of potential scrap rates.

When matching materials to application scenarios, the following guidelines can be followed: For aerospace structural components, high specific strength materials like 7075 aluminum alloy are preferred, with titanium alloy TC4 being an excellent alternative, while stainless steel is generally not recommended due to its higher weight. For medical implants, biocompatibility is the primary consideration, making Ti-6Al-4V titanium alloy or cobalt-chromium alloys the first choice, whereas ordinary stainless steel is unsuitable. For lightweight components like optical mounts, 6061 aluminum alloy or brass are ideal choices, while carbon steel is not recommended due to weight issues. For fixtures in high-temperature environments, materials with good thermal stability must be chosen, such as Inconel high-temperature alloys or specialized heat-resistant steels; ordinary steel cannot perform this task.
