CNC Milling

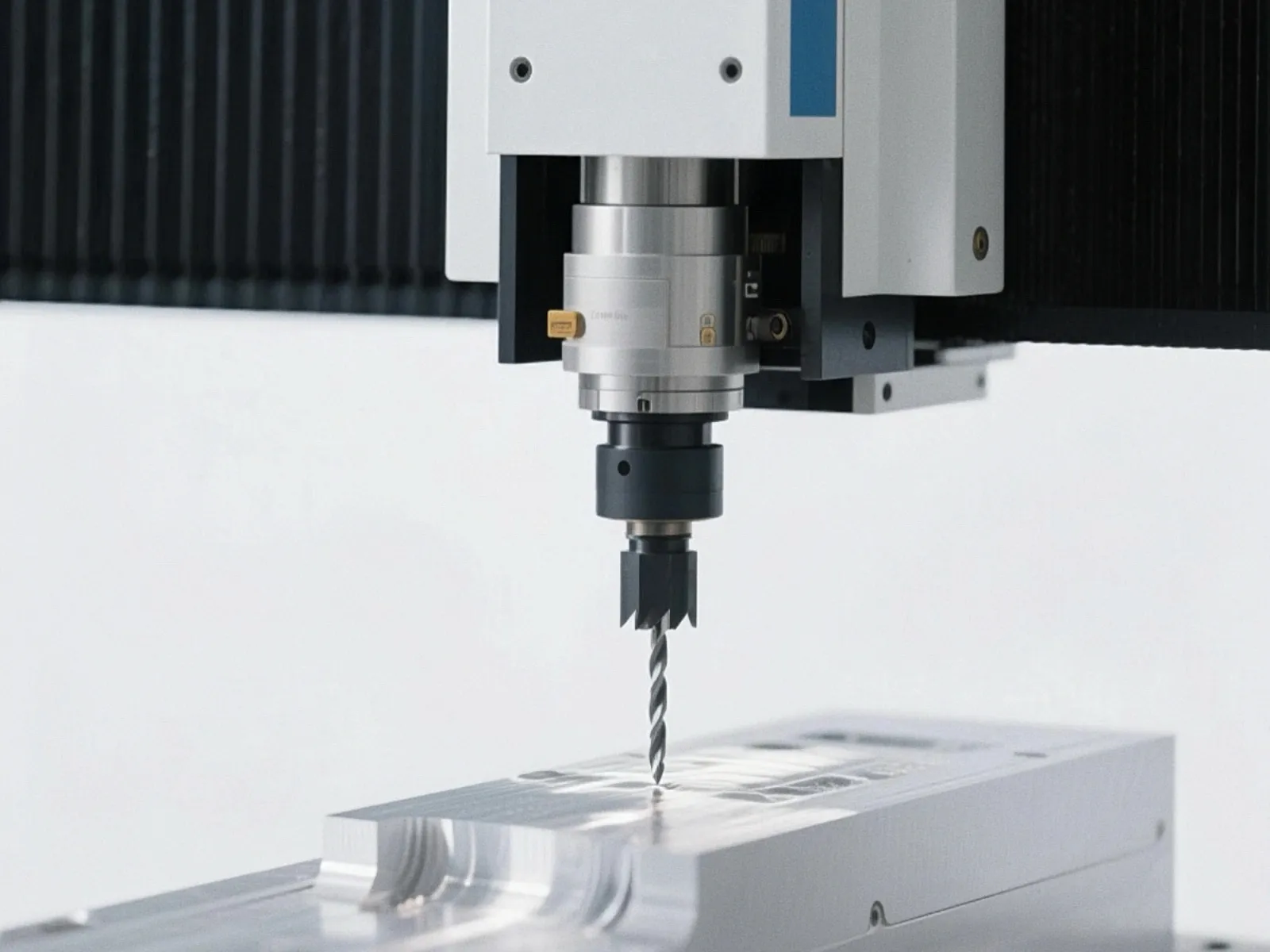

A Cornerstone of Advanced Manufacturing Capability. CNC milling is a precision manufacturing process controlled by computer programs. It uses rotating multi-point cutting tools to remove material from a workpiece, transforming a digital 3D design into a high-precision physical part.Certifications ISO 9001:2015
Certifications ISO 9001:2015
I. Working Principle: How Does It Work?
1. Design: Create a 3D model of the part using CAD software.
2. Programming: Use CAM software to translate the CAD model into G-code—a series of coordinates and movement instructions the CNC machine can understand.
3. Setup: The operator secures the workpiece (using a vise, fixture, or directly to the table) and loads the required cutting tools.
4. Execution: The program is run. The CNC controller precisely directs the movement of the machine axes, and the tool automatically cuts the material along the pre-defined path.
5. Completion: A finished part is produced that closely matches the original digital design.
II. Key Components of a CNC Milling Machine
Machine Frame: The rigid structure (base, column, etc.).
CNC Controller: The "brain" that reads and executes the G-code (e.g., Fanuc, Siemens, Heidenhain).
Servo Motors & Drive System: The "muscles" that precisely control axis movements.
Spindle: The component that rotates the cutting tool at high speeds.
Tool Magazine: Allows for automatic tool changes, enabling continuous machining of complex operations.
Work Table / Fixtures: Holds the workpiece securely in place.
Coolant System: Cools the tool and workpiece, extending tool life and improving accuracy.
III. Technological Capabilities & Characteristics
1. High Precision & Repeatability: Can achieve micron-level tolerances. Excellent for batch production with consistent part dimensions.
2. Complex Geometry Machining: Capable of producing 2D contours, 3D surfaces, pockets, threads, gears, and other geometries difficult for traditional methods.
3. High Automation & Efficiency: Once set up, it can run unattended for long periods, ideal for batch production.
4. Wide Material Compatibility: Can machine almost all engineering materials, including metals (aluminum, steel, titanium), plastics, composites, and wood.
5. Excellent Surface Finish: Can achieve very smooth surfaces, often ready for use, through fine-tuned cutting parameters.
IV. Primary Milling Operations
Face Milling: Creating a flat surface.
Profile Milling: Cutting the external or internal profile of a part.
Pocket Milling: Machining cavities or pockets.
Drilling & Tapping: Creating holes and threads.
3D Contour Milling: Machining complex free-form surfaces (e.g., molds, prototypes).
The Core Competitiveness of CNC Milling: From Precision to Efficiency

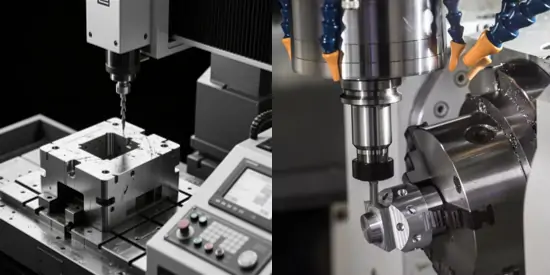

High-Precision Milling: CNC milling machines utilize a closed-loop control system to achieve micron-level repeat positioning accuracy. Through precise servo drives and high-resolution encoder feedback, multi-axis synchronization accuracy is ensured, meeting the demands of precision component manufacturing. Tolerances can reach ±0.005mm or even higher.
Complex Geometric Shape Machining Capability: Through five-axis simultaneous machining and multi-axis machining technologies, CNC milling can produce complex surfaces, deep cavity structures, inclined holes, and other complex components that are difficult to achieve with traditional methods. The integrated CAD/CAM system directly converts 3D models into efficient cutting paths.
High Production Efficiency and Automation: CNC milling machines are equipped with Automatic Tool Changers (ATC), enabling continuous multi-process machining. Machining centers support unattended operation and batch production, significantly reducing the machining cycle. High-speed milling technology enhances the material removal rate.
How to achieve higher precision, lower cost and faster delivery through CNC milling?
1. Higher Precision: Powered by Digital Closed-Loop Control
Precision is guaranteed by the system, not by human operators. CNC milling achieves consistent ±0.005mm-level tolerances and superior surface quality (Ra < 0.8μm) through closed-loop feedback from linear scales, high-rigidity mechanical structures, and direct CAD/CAM programming—effectively eliminating human-induced variations.
2. Lower Cost: Optimizing Total Lifecycle Cost
The key lies in reducing the cost per part across the entire lifecycle: optimized tool paths minimize material waste; multi-process machining in a single setup saves secondary operations and custom fixture costs; automated production reduces labor dependency and defect rates; and on-demand production capability cuts inventory overhead.
3. Faster Delivery: Compressing End-to-End Timeline Barriers
Digital integration dramatically shortens lead times: CAD models are directly converted into machining programs, eliminating manual drafting; automatic tool changers and high-speed cutting enable 24/7 continuous operation; program-based changeovers allow product switches in minutes—making it ideal for rapid prototyping and urgent small-batch orders.
CNC milling is not merely a faster machine; it is a modern manufacturing system driven by digitalization, grounded in standardization, and manifested through automation. Improved precision reduces rework and inspection time, thereby accelerating delivery speed. Faster delivery enables small-batch on-demand production, which in turn lowers inventory and management costs. Optimized cost structures free up resources for investing in more advanced processes and equipment, continuously pushing the boundaries of precision and efficiency.
Major Application Fields of CNC Milling
1. Consumer Electronics
Typical Products: Smartphone frames/backplates, laptop housings, wearable device structural components
Materials Used: Aluminum alloys (6061/7075), stainless steel, engineering plastics
2. Medical Device Manufacturing
Typical Components: Orthopedic implants, surgical instruments, dental implants, medical equipment housings
3. Automotive Industry
Powertrain Systems: Engine blocks, transmission housings
Chassis Components: Suspension parts, steering knuckles

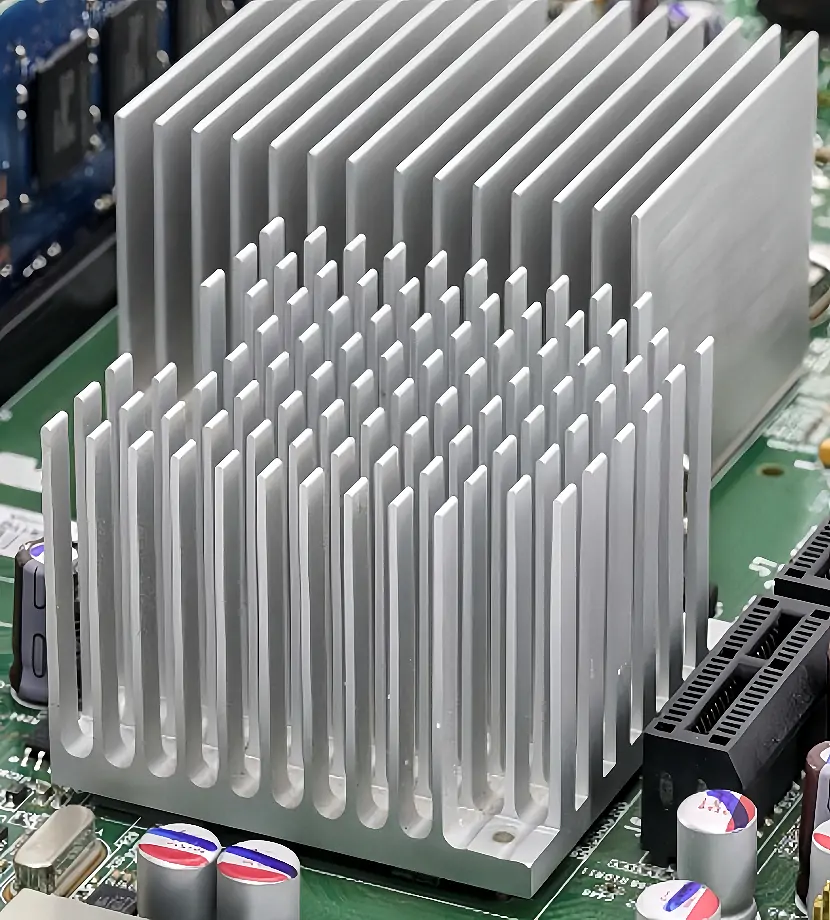

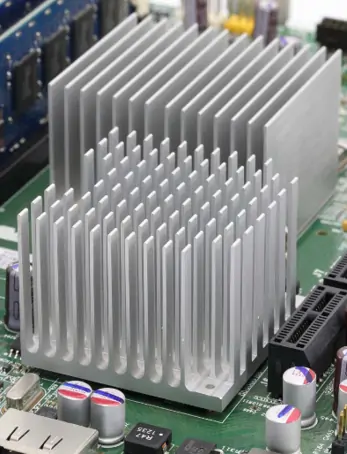

New Energy “Three-Electric” Systems: Motor housings, battery enclosures, electronic control heat sinks
4. Aerospace Manufacturing
Typical Components: Engine blades, turbine disks, structural frames, landing gear parts
5. Industrial Machinery
Key Components: Robot joints/bases, automation equipment frames, precision transmission parts.
Check Out the Toolkit
Material Selection Decision on CNC Milling
Anxin offers a wide variety of materials for custom CNC milling, plastic, and metal, including but not limited to:
Aluminum: 6061-T6, 7075-T6, 2024, 5052, 6060, 5083, 2017, 6082
Aluminum’s strength-to-weight ratio, affordability, and recyclability have made it widely used across industries worldwide.
Stainless Steel: SS 303/304/316/17-4PH/420/440C
Alloy Steel/Tool Steel: D2/SKD11/H13
Finishing Options: Anodizing Types II, III, III + PTFE, ENP, Media Blasting, Nickel Plating, Powder Coating, Tumble Polishing
Brass/Copper:C110/C360Titanium: TC4(Ti-6Al-4V)
POM(Delrin/Acetal): High stiffness, good moisture resistance, high wear-resistance, and low friction, easy to machine
PMMA (Acrylic):Color:(White, black, brown etc.)
PEEK: Grade: POM-C, POM-H, UV stabilized POM, Food-Grade POM
ABS/Nylon (PA)/PTFE (Teflon)/PVC/Carbon Fiber
When selecting materials for CNC machining, it is necessary to comprehensively consider multiple technical parameters
In terms of functionality: For structural components, priority is given to strength, with alloy steel or titanium alloys being the preferred choices; for lightweight requirements, aluminum alloys or composite materials are suitable; for corrosion-resistant environments, stainless steel or special alloys are ideal; for heat sinks, copper or high thermal conductivity aluminum should be considered.
In terms of machinability: Aluminum alloys are the easiest to achieve high-quality surfaces; stainless steel requires control over work hardening; tool steel must account for its heat treatment state; and titanium alloys necessitate specialized processing solutions.
Material selection for CNC milling is a multi-level trade-off process that requires comprehensive consideration of functional requirements, machining feasibility, cost control, and technical capabilities—a four-dimensional balance. The essence of material selection lies in finding the optimal equilibrium between design requirements, process capabilities, and economic feasibility. Proper material selection forms the foundation for project success, directly impacting product quality, production costs, and delivery timelines.

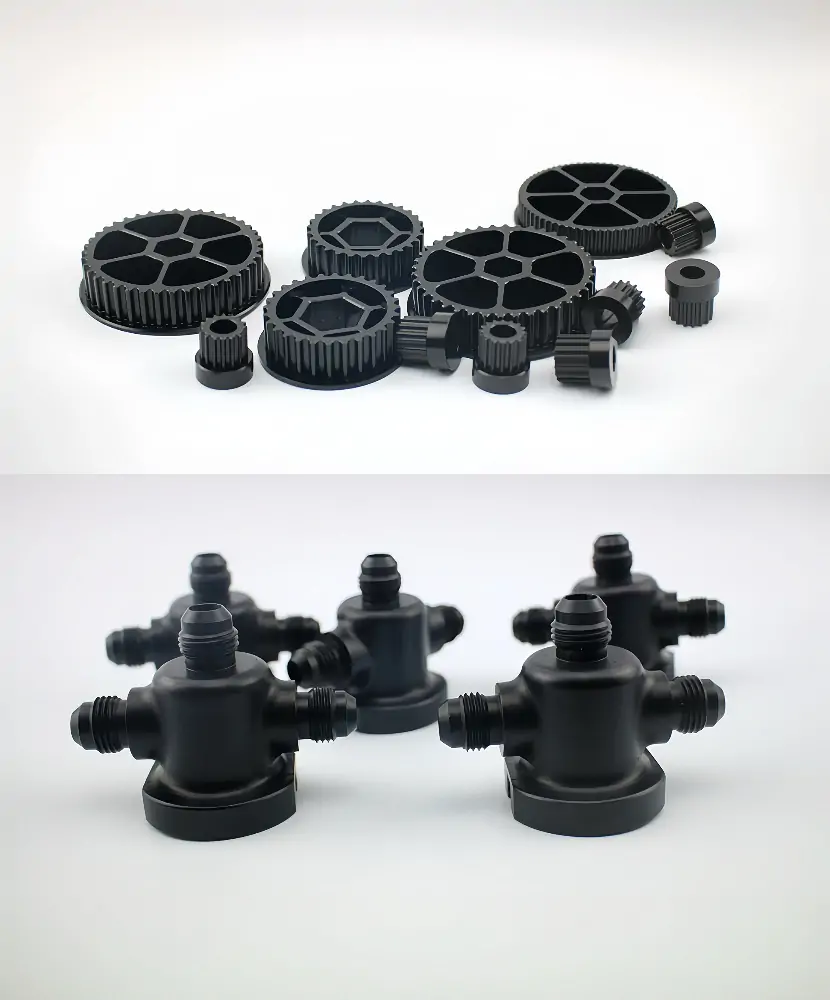

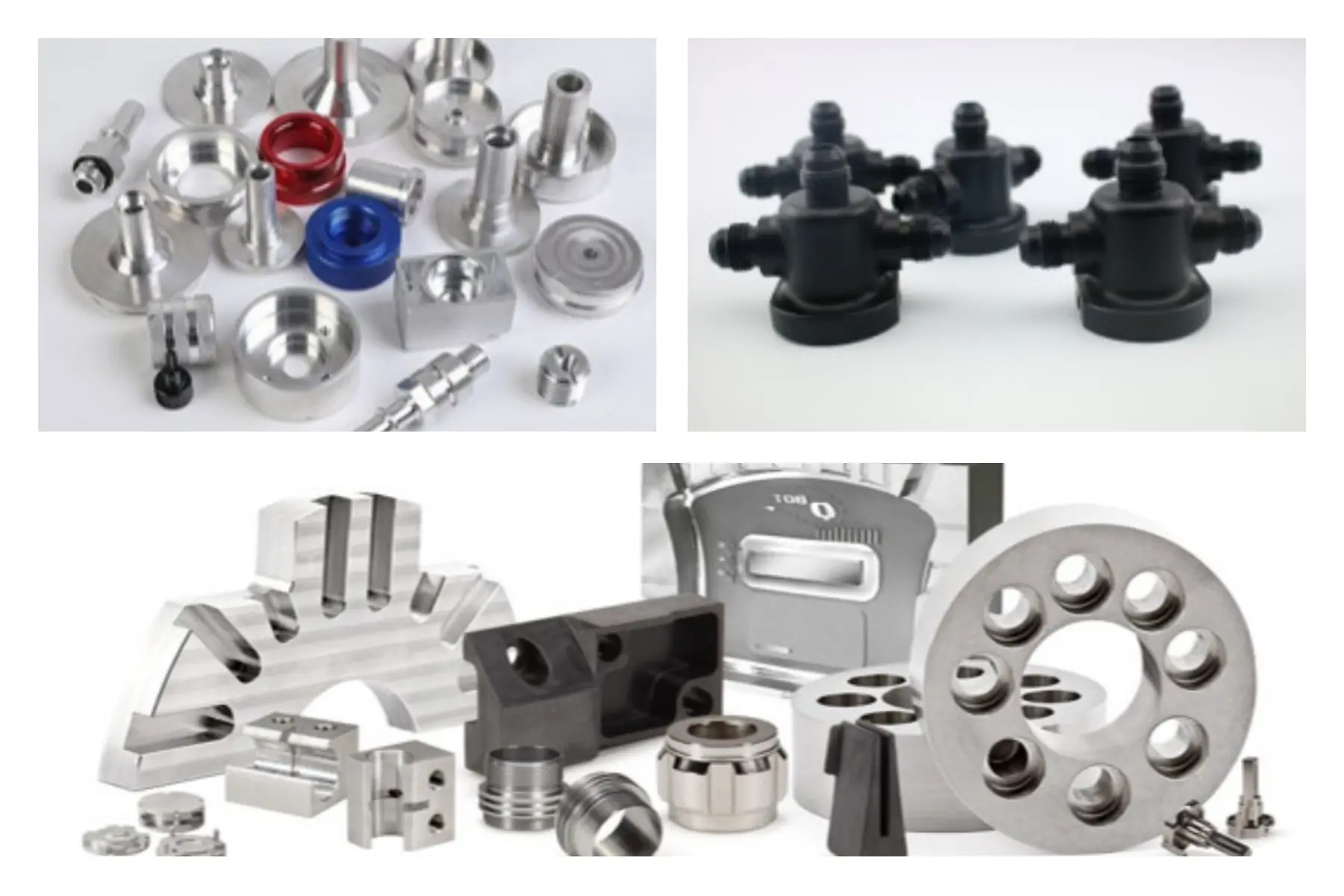

Surface Treatment Options for CNC Milling
I. Mechanical Surface Treatments (Directly on the Machine)
1. High-Gloss Milling: Diamond tool precision machining to achieve a mirror finish (Ra< 0.1μm).
2. Texture Machining: Engraving tools to create decorative textures such as brushed, grid, or leather patterns.
3. Sandblasting: Produces a uniform matte surface, masking machining marks.
4. Polishing: Mechanical or manual polishing to enhance surface smoothness.
II. Chemical/Electrochemical Treatments (Performed in Specialized Workshops)
1. Anodizing (for Aluminum):
Clear Anodizing: Improves wear and corrosion resistance.
Color Anodizing: Achieves colors such as black, gold, or blue.
Hard Anodizing: Ultra-thick, hard wear-resistant layer.
2. Electroplating:
Chrome/Nickel Plating: Enhances hardness and decorative appeal.
Electroless Nickel Plating: Uniform coating for complex parts.
3. Passivation of Stainless Steel: Acid treatment to improve corrosion resistance while retaining the metal’s original appearance.
4. Spray Coating Technologies:
Powder Coating: Thick coating with excellent weather resistance.
Liquid Paint Spraying: Optimal for appearance and finish.
III. High-Performance Functional Coatings
PVD Coating: Vacuum deposition of ultra-hard coatings like TiN or DLC (hardness> HV2000).
Thermal Spraying: Repairs worn parts or imparts special properties.
Key Decision Factors for Selection
Aesthetic Decoration-Color Anodizing, High-Gloss Milling, Spray Coating
Wear/Corrosion Resistance-Hard Anodizing, Electroplating, PVD
Medical/Food-Grade Compliance-Electro-polishing, Passivation
Low-Cost Protection-Sandblasting, Passivation, Phosphating
Functional Enhancement-Thermal Spraying, Composite Coatings
Check Out the ToolkitCNC Milling Frequently Asked Questions (FAQs)
What is CNC milling? What is the fundamental difference between it and a traditional milling machine?
expand_less expand_moreA: CNC (Computer Numerical Control) milling is a process where pre-programmed digital instructions control the automatic execution of milling operations by the machine tool.
How to choose a suitable CNC milling machine? What key parameters should be considered?
expand_less expand_moreA: Based on a seven-dimensional "demand-capability" matching evaluation method:Travel range;Spindle power;Torque curve;Positioning accuracy;Tool magazine capacity;CNC system;Rigidity performance.
What are the differences between 3-axis, 4-axis, and 5-axis CNC milling machines?
expand_less expand_more3-axis: XYZ linear motion only; 4-axis: +1 rotational axis for cylindrical features; 5-axis: +2 rotational axes, full contouring in single setup
What core skills are required for operating a CNC milling machine?
expand_less expand_moreA: Proficiency in CAD/CAM software programming, understanding of G-code, and machine operation is necessary. Additionally, knowledge of materials, tool selection, and optimization of process parameters is required.
How to reduce tool wear in CNC milling?
expand_less expand_moreA: Optimize cutting parameters (speed/feed/depth of cut) and select appropriate coated tools. Ensure adequate cooling and avoid impacts caused by intermittent cutting.
How to ensure surface finish in CNC milling?
expand_less expand_moreA: Use fine-step finishing toolpaths and increase spindle speed. Employ sharp tools and maintain consistent cutting load and cooling.
What are the key technical points of High-Speed Milling (HSM)?
expand_less expand_moreA: Apply a parameter combination of high spindle speed, shallow depth of cut, and high feed rate, complemented by lightweight tools and smooth path planning.
What are key daily maintenance items for CNC milling machines?
expand_less expand_moreA: Clean chips and check the lubrication system daily. Regularly calibrate machine accuracy and clean guide rails and spindle taper holes.
How to effectively control CNC milling accuracy?
expand_less expand_moreA: Reduce systematic errors through machine calibration and temperature compensation; optimize cutting parameters to suppress vibration and tool wear.
How to select cutting tools for CNC milling?
expand_less expand_moreA: Choose tool material based on workpiece material (e.g., carbide); select tool type based on machining features (e.g., ball-end mills for curved surfaces).
