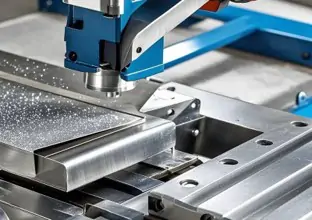

Metal bending: The core process for precisely shaping the industrial world

The first impression that metal gives people is always hard and not easy to deform. However, from the steel structures of skyscrapers to the precise components in your mobile phone, countless metal products have undergone the magical transformation of "bending". Behind this is not magic, but a perfect combination of materials science and precision engineering. Let’s explore together the practical working principle of metal bending.

I. The physical essence of Metal Bending: Plastic Deformation

1. Changes in the microscopic world

When an external force acts on a metal, its internal crystal structure begins to slide and reorganize. Just like the relative sliding between the cards when a deck of playing cards is bent in the hand - the metal atomic layers also rearrange in a similar way, forming a permanent shape change.

2. Key threshold: Yield strength

Every metal has its "yield point" - this is the critical point at which a material transitions from elastic deformation (recoverable) to plastic deformation (permanent change). Successful industrial bending must be precisely controlled above this point, but it should not be excessive to cause breakage.

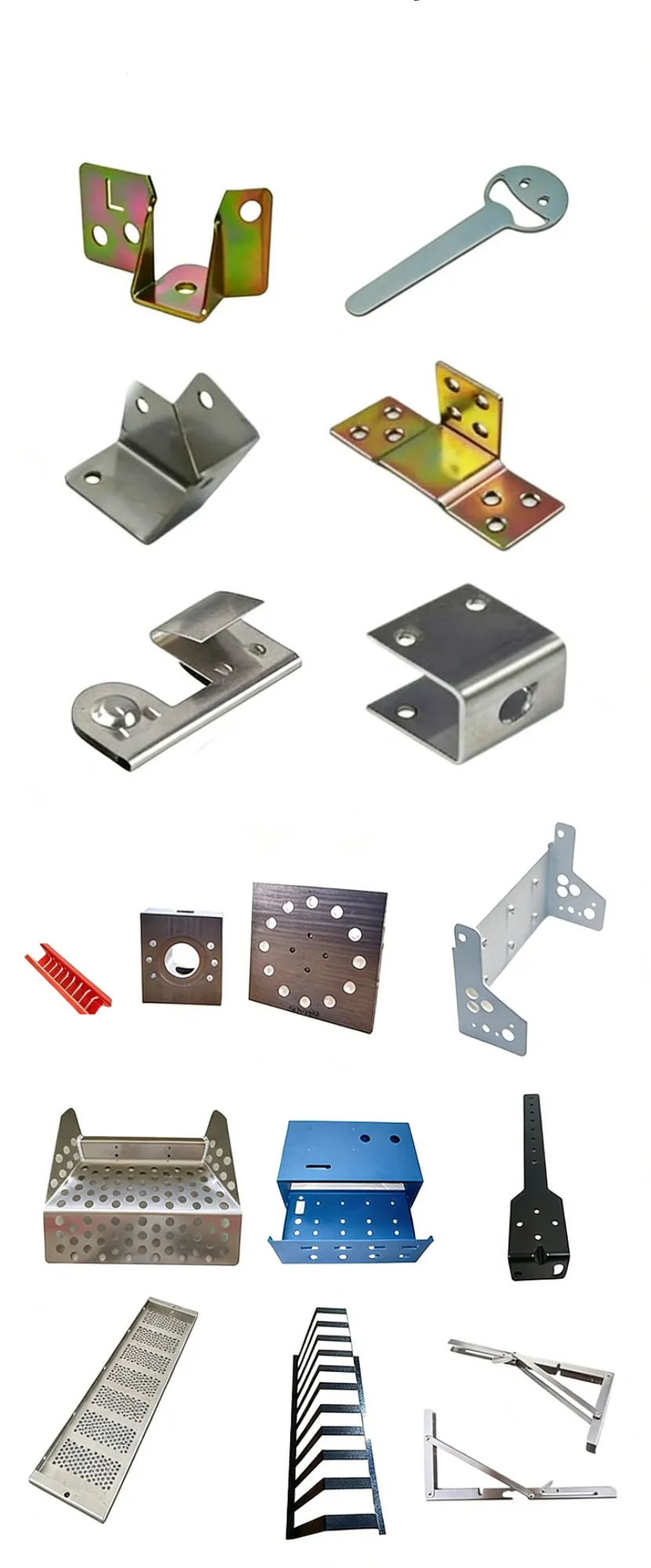

2.Bending characteristics of different materials

1. Low-carbon steel has good ductility and is easy to bend to control springback. Generally, it needs to be over-bent by 2-3°

2. Stainless steel has high strength and great resilience, so it requires greater pressure. Pay attention to surface protection

3. Aluminum is soft but prone to cracking. Control the bending speed and avoid a radius that is too small

4. Copper and brass have excellent ductility. Pay attention to softening treatment to prevent work hardening

3. The limit of bending: Under what circumstances will metals break?

Metal bending is not infinitely possible, and its boundary is determined by the minimum bending radius:

Formula: Minimum radius ≈ material thickness × material coefficient

For example, the minimum bending radius of a 2mm thick low-carbon steel plate is approximately 0.8mm (thickness ×0.4).

Exceeding the limit will lead to: cracking on the outer surface, wrinkling on the inner surface, and a significant reduction in strength

The Core Value of Metal Bending

1. Structural Integrity Value

·Fiber Continuity: The bending process does not cut off the grain flow direction within the metal. Compared with welding and assembly, the fatigue strength of parts formed by bending is increased by 30-50%

· No heat-affected zone: Avoid material embrittlement, deformation and residual stress caused by welding

· Integrated molding: Single-piece molding for complex structures, eliminating the risk of connection point failure

2.Economic value: Multiple returns on every input.

· Material savings: Reduce raw material waste by an average of 15-25%, and maximize the utilization rate of sheet metal through precise calculation of the unfolded size

· Process integration: A single process replaces multiple steps such as "cutting - positioning - welding - trimming", reducing labor costs by over 40%

· Energy consumption economy: Compared with hot processing such as casting and forging, the energy consumption of cold bending forming is only 1/3 to 1/2

3. Design freedom value: The physical foundation for Unleashing creativity.

· Geometric diversity: Achieve diverse shapes such as acute angles, obtuse angles, gradually changing arcs, and compound angles

· Thin-wall forming capability: It can process metal plates as thin as 0.3mm without losing stability

· Precise shape control: Modern equipment can achieve an Angle accuracy of ±0.1° and a position accuracy of ±0.05mm

4.Sustainability Value: The Practical Path of Green Manufacturing

· Material recyclability friendly: Bent parts are easy to disassemble and sort for recycling, maintaining the purity of a single material

· Process cleanliness: A cold working process with no chemical treatment and minimal waste generation

· Lightweight contribution: By optimizing the structural design, a weight reduction of 20-40% is achieved under the same strength, lowering the energy consumption throughout the product’s life cycle

Choose Anxin for Metal Bending and You will Get

I. Accuracy Commitment: ±0.1° Angle accuracy, ±0.05mm repeat positioning accuracy

2.Cost optimization: Through process optimization, the average comprehensive cost for customers is reduced by 20% to 30%

3. Fast Delivery: With a professional sample-making channel, regular parts can be delivered within 2 or 3 days

4. Professional Engineering Support: Free manufacturability analysis (DFM) is provided, with an optimization design success rate of over 98%

5. Quality Assurance: Dual certifications of ISO 9001 and IATF 16949, with full digital traceability throughout the process

6. Technological Leadership: Equipped with a fully automatic intelligent bending center, it supports the one-click completion of complex processes

7. Flexible Production Capacity: From 1 piece to tens of thousands of pieces, we can efficiently undertake them and ensure consistent quality

In Short: We make complex metal bending simple, reliable and economical.

Quality Inspection System&Surface Treatment Options for Metal Bending

I. Dimension Inspection

1. Traditional measuring tool inspection

· Vernier calipers and height gauges

· Feeler gauge/clearance gauges

2. Specialized inspection tools for testing

· Angle gauge/Angle block

· R gauge

3. High-precision instrument detection

· 2D image measuring instrument

· 3D Coordinate Measuring machine

2. Surface Treatment

I. Pretreatment (Crucial)

1. Degreasing/oil removal: Use alkaline cleaning agents or organic solvents to remove lubricating oil and stains from the stamping and bending processes.

2. Rust removal: Use mechanical methods (such as sandblasting, shot blasting) or chemical methods (acid washing) to remove the oxide scale and rust layer.

3. Deburring: Grind, polish or use "chemical polishing" or "electrolytic polishing" to remove micro-burrs on the sharp edges produced by bending to ensure safety and the quality of subsequent coatings.

2. Main Treatment (Core Process)

1. Electroplating

· Galvanization

· Chrome plating

· Nickel plating

2. Chemical conversion membrane

Phosphating

Chromate treatment (passivation)

3. Spraying

· Powder coating

· Liquid spray painting

4. Anodizing (mainly used for aluminum alloys)

5. Other methods:

· Brushing/Polishing

· Silk-screen printing/laser marking

Metal Bending Frequently Asked Questions (FAQs)
