Precision Machining Services for Anxin Metal
Anxin Precision Machining: Where intricate designs meet impeccable craftsmanship. Our state-of-the-art machining solutions ensure superior accuracy and consistency, empowering your projects with components you can depend on.
ISO 9001:2015
How to Achieve Precision Machining?
1. Select high-precision machining equipment such as 5-axis CNC machining centers and precision grinders; conduct regular equipment calibration, spindle dynamic balance testing and guide rail lubrication maintenance to ensure equipment operation accuracy.
2. Optimize machining processes, including rational tool path planning and precise setting of cutting parameters (rotational speed, feed rate, cutting depth); prioritize the one-clamping multi-process machining method to reduce the impact of clamping errors on precision.
3. Match precision tools and fixtures with high rigidity and wear resistance; select appropriate tool coatings according to workpiece materials, and conduct good tool wear monitoring and timely replacement.
4. Control the machining environment to maintain constant temperature and humidity and reduce vibration interference; at the same time, assign professional technicians to operate the equipment to ensure the standardization and stability of the machining process.
Principles of Precision Machining .
1. High-precision Motion Control: CNC systems with high-resolution encoders and servo motors drive multi-axis (3/4/5-axis) coordinated movement, ensuring micron-level tool path accuracy and batch consistency.
2. Thermal Deformation Mitigation: Stable constant-temperature environments and real-time CNC thermal compensation offset dimensional deviations caused by heat-induced expansion or contraction of workpieces and equipment.
3. Cutting Force & Vibration Reduction: Optimized cutting parameters and high-rigidity, wear-resistant tools minimize cutting force; rigid machine tool structures suppress chatter to avoid workpiece deformation.
4. Precision Fixturing & Clamping: Specialized fixtures and one-stop clamping reduce cumulative errors from multiple setups, maintaining precise relative positions across all machined surfaces.
How to Measure Precision Machining Dimensions?
1. Contact Measurement: Use tools like micrometers, calipers, and height gauges for direct measurement of lengths, diameters, and depths with high accuracy.
2. Optical Measurement: Adopt vision measuring machines or laser scanners for non-contact detection of complex surfaces, avoiding workpiece deformation.
3. Coordinate Measurement: Utilize CMM (Coordinate Measuring Machine) to measure 3D coordinates of key features, suitable for precision components like 5-axis machined parts.
Key Characteristics of Precision Machining
1. Ultra-high Dimensional Accuracy
Delivers components with tight tolerances down to micron or sub-micron levels, meeting the strictest precision requirements of aerospace, medical and high-end manufacturing industries.
2. Superior Surface Finish
Minimizes tool marks and surface roughness through optimized cutting parameters and high-precision equipment, eliminating the need for additional post-processing in most cases.
3. Complex Geometry Machinability
Enables one-step machining of intricate 3D contours, curved surfaces and multi-angle features (especially with 5-axis systems), reducing setup times and cumulative errors from multiple clamping operations.
4. Exceptional Batch Consistency
Relies on computer numerical control (CNC) systems to ensure identical machining results across large production runs, maintaining stable quality and reducing component rejection rates.
5. Wide Material Adaptability
Handles a broad spectrum of materials—from soft engineering plastics to hard aerospace alloys and composites—while retaining high precision and surface quality.
Technological Procedures of Precision Machining
1. Pre-machining Preparation
Conduct DFM (Design for Manufacturability) analysis to optimize component designs for precision machining; select suitable raw materials and cutting tools based on material properties and accuracy requirements; program CNC machining paths with simulation to avoid tool collision.
2. Precision Fixturing & Clamping
Use specialized fixtures (e.g., vacuum chucks, hydraulic clamps) to position the workpiece stably; adopt one-clamping setup to minimize cumulative errors from multiple clamping operations; calibrate fixtures to ensure alignment with machine tool axes.
3. Multi-stage Machining Operation
Perform rough machining first to remove excess material efficiently with relatively large cutting parameters; conduct semi-finish machining to refine the workpiece shape and reduce machining allowance; execute finish machining with high spindle speed, low feed rate and small cutting depth to achieve the required dimensional accuracy and surface finish; apply 5-axis machining for complex contours to ensure multi-angle machining in one setup.
4. In-process Quality Monitoring
Implement real-time measurements using on-machine probes during machining to check key dimensions; adjust cutting parameters dynamically according to monitoring data to compensate for dimensional deviations; conduct thermal compensation to offset errors caused by temperature changes.
5. Post-machining Treatment & Inspection
Carry out necessary post-processing such as deburring, cleaning and surface coating to improve component performance; conduct final inspection with precision instruments (e.g., CMM, vision measuring machines) to verify compliance with design tolerances; issue quality inspection reports for traceability.
Key Application Industries of Precision Machining
1. Aerospace Components
High-precision parts like turbine blades, aircraft structural components, and engine casings, which demand strict tolerances and excellent performance under extreme conditions.
2. Medical Devices & Implants
Biocompatible components such as surgical instruments, dental implants, and prosthetic parts, requiring micron-level accuracy to ensure safety and compatibility with the human body.
3. Automotive High-performance Parts
Critical components including fuel injectors, transmission gears, and sensor housings, where precision directly impacts vehicle efficiency, stability and lifespan.
4. Optical & Electronic Components
Precision parts like lens molds, semiconductor equipment parts, and MEMS sensors, which need ultra-smooth surfaces and accurate geometric dimensions for optimal functionality.
5. Precision Molds & Dies
Injection molds, stamping dies, and die-casting molds with intricate cavities and cores, where precision machining ensures consistent quality of molded products.
6. Robot Industry Components
High-precision robotic joints, gearboxes, end-effector parts, and sensor mounting brackets, which require tight dimensional accuracy to guarantee smooth motion, precise positioning and long-term operational stability of robotic systems
Materials Suitable for Precision Machining
1. Ferrous Metals
- Tool Steel & Mold Steel: Characterized by high hardness and wear resistance, these steels are ideal for manufacturing precision molds, dies, and cutting tools. Precision machining ensures the intricate cavity geometries and smooth surfaces required for injection molding and stamping applications.
- Stainless Steel: With excellent corrosion resistance and mechanical strength, grades like 304 and 316 are widely used for medical devices, aerospace fasteners, and food-processing equipment parts, where tight tolerances and surface finish are critical.
2. Non-ferrous Metals
- Aluminum Alloys: Lightweight, high-strength aluminum alloys (e.g., 6061, 7075) are easy to machine and deliver high precision, making them a top choice for aerospace structural parts, automotive components, and electronic enclosures.
- Titanium Alloys: High strength-to-weight ratio and biocompatibility make titanium alloys (e.g., Ti-6Al-4V) suitable for aerospace turbine blades and medical implants. Precision 5-axis machining is key to shaping their tough structures while maintaining micron-level accuracy.
3. Engineering Plastics
- High-performance plastics such as PEEK, PTFE, and nylon offer chemical resistance, low friction, and dimensional stability. They are precision-machined into components for medical devices, aerospace insulators, and robotic parts, with minimal deformation during processing.
4. Composite Materials
- Carbon Fiber-Reinforced Polymers (CFRP) and Glass Fiber-Reinforced Polymers (GFRP) are favored for high-strength, lightweight applications in aerospace and automotive industries. Precision machining with specialized cutting tools prevents delamination, ensuring the structural integrity of complex parts.

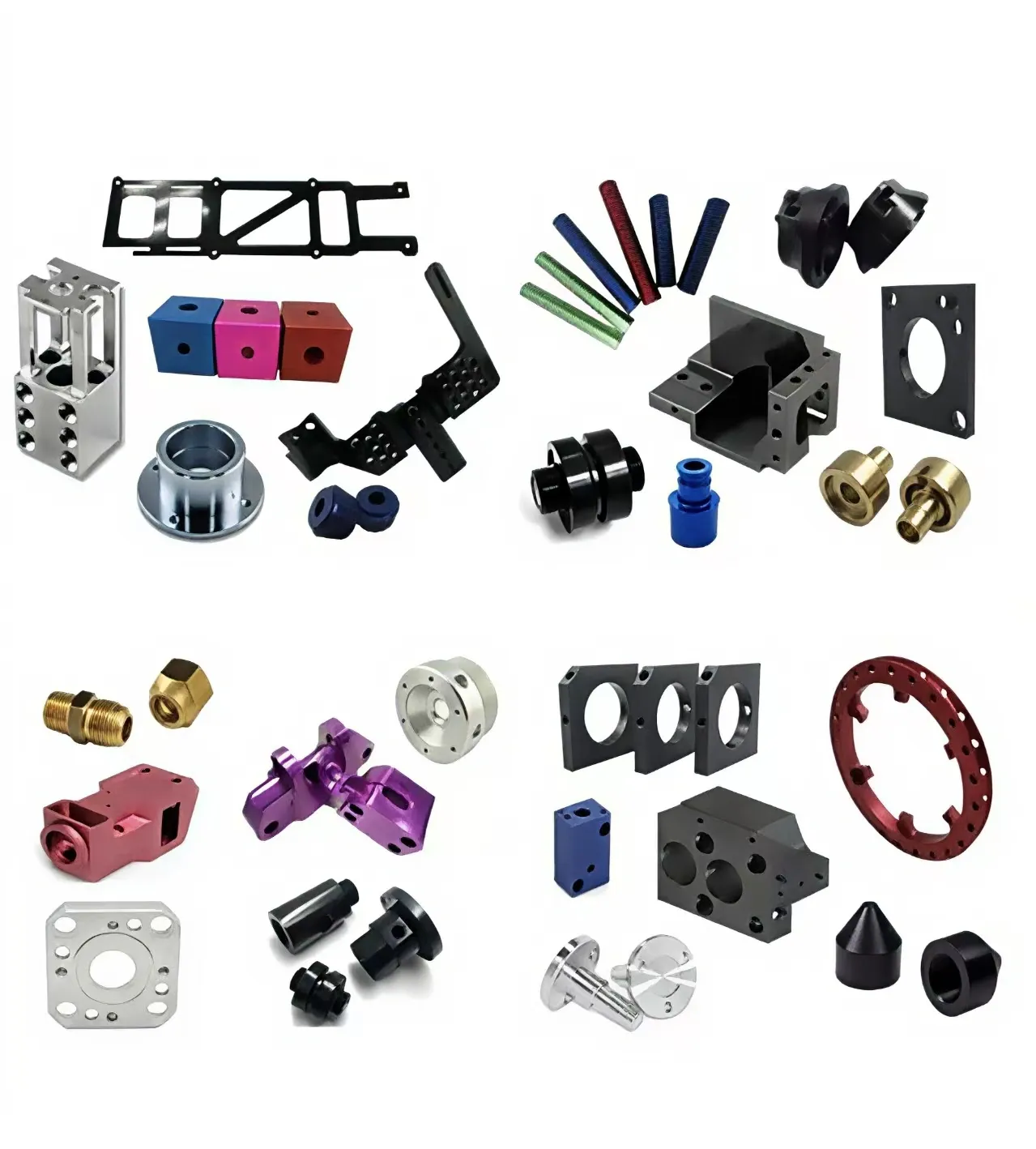

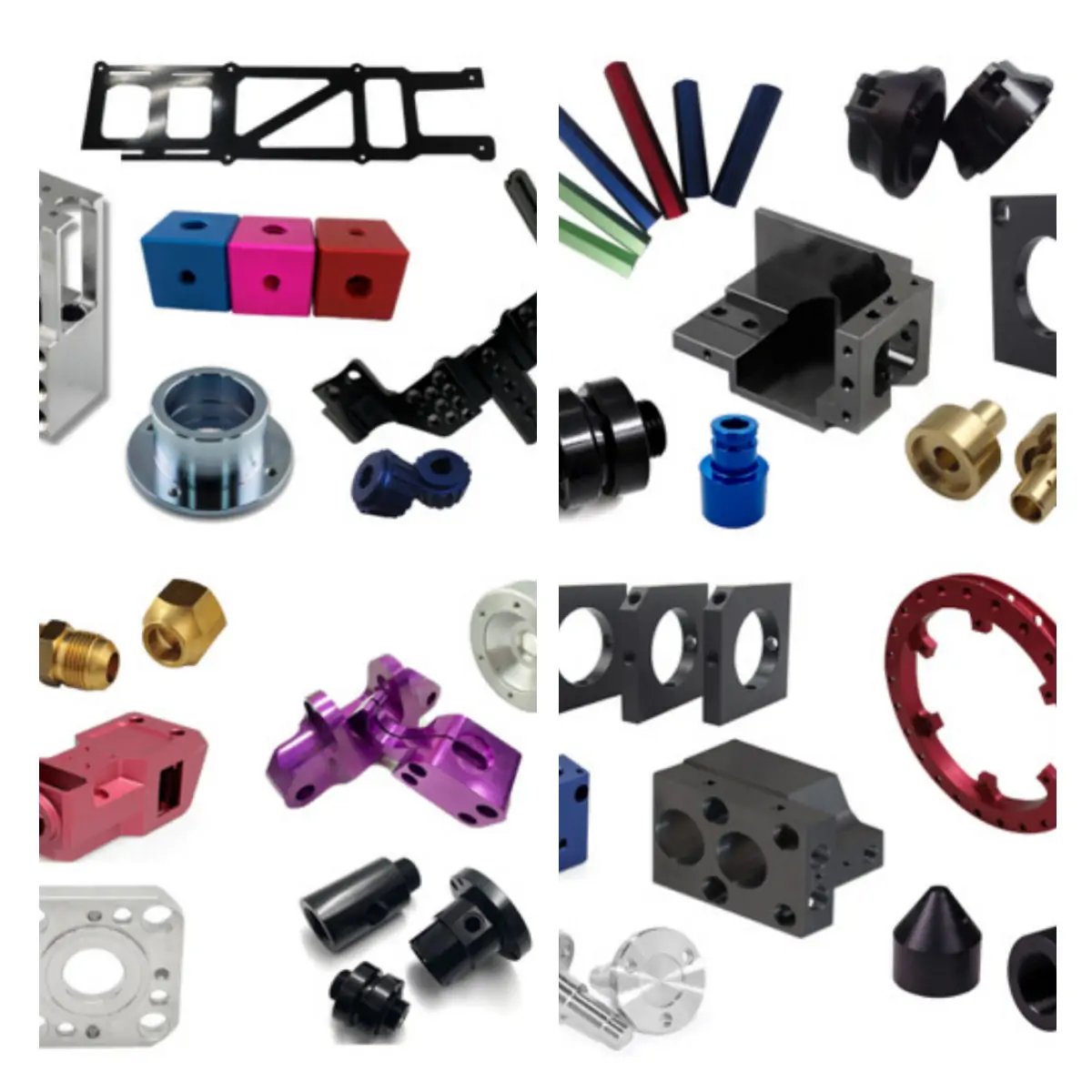

Surface Treatment Processes for Precision Machined Products
1. Mechanical Finishing
Includes grinding, polishing, and honing. These processes remove tool marks, reduce surface roughness, and enhance dimensional accuracy, ideal for components requiring ultra-smooth surfaces like mold cores and hydraulic parts.
2. Chemical Surface Treatment
Covers passivation, pickling, and chemical polishing. Passivation forms a protective oxide layer on stainless steel to improve corrosion resistance; chemical polishing brightens metal surfaces without altering precise dimensions.
3. Electrochemical Treatment
Features electroplating and anodizing. Anodizing creates a hard, wear-resistant oxide film on aluminum alloys for aerospace and automotive components; electroplating (e.g., nickel, chrome plating) adds corrosion protection and aesthetic appeal to precision parts.
4. Thermal Surface Treatment
Involves nitriding and carburizing. These processes diffuse nitrogen or carbon into the metal surface to boost hardness and wear resistance, suitable for high-load precision components such as gears and bearing seats in robotic systems.
5. Coating Treatment
Encompasses physical vapor deposition (PVD) and chemical vapor deposition (CVD). PVD coatings (e.g., TiN, TiCN) offer high hardness and low friction for cutting tools and precision molds; CVD coatings provide excellent thermal stability for components used in extreme environments.
Precision Machining Frequently Asked Questions (FAQs)
Which materials are most suitable for precision machining?
expand_less expand_moreA: Common materials include tool steel, stainless steel, aluminum alloys, titanium alloys, PEEK, CFRP, and other high-performance plastics and composites.
How does 5-axis machining improve precision machining outcomes?
expand_less expand_moreA: 5-axis machining enables one-clamp multi-angle machining of complex parts, reduces cumulative errors from multiple setups, and ensures superior surface finish for intricate contours.
What factors affect the surface finish of precision-machined parts?
expand_less expand_moreA: Key factors include cutting parameters (spindle speed, feed rate), tool material and coating, machine tool rigidity, and post-processing steps like deburring and polishing.
What quality inspection tools are used for precision machining?
expand_less expand_moreA: Typical tools include coordinate measuring machines (CMM), vision measuring systems, micrometers, height gauges, and on-machine probes for real-time monitoring.
How to avoid thermal deformation during precision machining?
expand_less expand_moreA: Solutions include maintaining a constant-temperature workshop, applying CNC thermal compensation algorithms, and selecting cutting parameters that minimize heat generation.
Can precision machining handle both small-batch prototyping and large-scale production?
expand_less expand_moreA: Yes, it is highly flexible—CNC programming allows quick switching between prototypes and mass production while ensuring consistent accuracy across batches.
What industries rely most on precision machining services?
expand_less expand_moreA: Core industries include aerospace, medical devices, automotive, robotics, optical electronics, and precision mold manufacturing.
