Sheet Metal Fabrication
A Core Process Within the Manufacturing Industry.
Sheet metal fabrication refers to the manufacturing process of cutting, forming, and assembling metal sheets, involving various precision manufacturing technologies. Typical sheet metal materials include mild steel, stainless steel, aluminum, and copper alloys, with thickness usually ranging from 0.5mm to 6mm.
Certifications ISO 9001:2015
I. Core Manufacturing Process Flow-Sheet Metal Fabrication
1.1 Cutting Processes
Laser Cutting: High-precision, high-efficiency cutting method suitable for complex contours.
Plasma Cutting: Suitable for fast cutting of thicker plates.
Waterjet Cutting: A cold cutting process with no heat-affected zone.
Punching: Uses dies for batch hole-making.
Shearing: Basic process for straight-line cutting.
1.2 Forming Processes
Bending: Achieves V-bends, U-bends, etc., using a press brake.
Stamping: Uses dies for batch forming.
Roll Forming: Continuous bending to form long profiles.
Deep Drawing: Produces cup-shaped or shell-like parts.
Spinning: A rotational forming process suitable for axisymmetric parts.
1.3 Joining and Assembly Processes
Welding: Includes MIG, TIG, spot welding, etc.
Riveting: Mechanical fastening method.
Bolting: Detachable fastening method.
Adhesive Bonding: Application of structural adhesives.
II. Main Types of Sheet Metal Fabrication Process
① Cutting
Trimming sheets into desired shapes, e.g., laser cutting, plasma cutting.
② Bending
Applying pressure to bend sheets into required angles and three-dimensional structures.
③ Stamping
Using dies to form or separate sheet metal, ideal for mass-producing complex parts.
④ Welding
Joining metal parts by melting and fusing them, creating a permanent, strong bond.
⑤ Riveting
Mechanically fastening parts with rivets, commonly used for reliable yet detachable structures.
⑥ Forming
Shaping sheets into complex 3D geometries through processes like stretching and spinning.
Sheet Metal Fabrication: Key Advantages & Technical Merits
I. Cost and Efficiency Advantages
Sheet metal fabrication achieves high material utilization through optimized nesting design. After tooling is completed, the per-unit production cost is significantly reduced, making it highly suitable for large-scale production. Additionally, the process supports the processing of various raw materials, including stainless steel, aluminum, and other metal sheets.
II. Precision and Quality Advantages
Leveraging CNC technology, sheet metal fabrication enables millimeter-level precision control. The digital workflow ensures consistency in batch production and meets stringent industrial tolerances and quality standards.
III. Strength and Durability
Structures formed through bending, welding, and other processes exhibit high strength. Surface treatment processes further enhance corrosion resistance and aesthetics, while offering multiple joining methods to meet varying strength requirements.
IV. Flexibility and Adaptability
The process supports rapid prototyping without the need for molds, allowing quick responses to design changes. Its flexible combination of processes accommodates manufacturing needs ranging from simple components to complex structures.
V. Industry Versatility
Sheet metal fabrication is widely applied in fields such as aerospace, electronic equipment, and mechanical manufacturing. It is capable of forming complex curved surfaces and is easily integrated with automation systems, aligning with trends in smart manufacturing.
Advanced Processes and Trends in Sheet Metal Fabrication
I. Intelligent Automation
Robotic Bending Cells: Visual positioning, automatic mold changing
Laser Cutting Lines: Automatic loading/unloading, high-power lasers
Intelligent Stamping Centers: Quick mold changeover, multi-process integration
II. Hybrid Processing Technologies
Laser Cutting-Bending Combo Machines: Multiple operations completed in a single setup
3D Printing-Sheet Metal Hybrid Manufacturing: Complex structures formed in one step
Advanced Joining Processes: Adhesive-rivet hybrid bonding for combined strength and sealing
III. Digital Transformation
Virtual Die Tryout: Predicts springback in advance, reducing trial and error
Real-time Monitoring: Sensors track equipment status to prevent failures
Cloud Collaboration: Online quoting, design review, progress tracking
IV. Green Manufacturing
Energy-Efficient Lasers: Fiber lasers reduce energy consumption by 50%
Eco-friendly Surface Treatments: Water-based coatings, chrome-free passivation
Lightweight Processes: Hot stamping of high-strength steel, hydroforming
V. Emerging Applications
Data Center Cabinets: Efficient thermal management, EMI shielding
Medical Equipment Housings: Seamless polishing, cleanroom standards
Modular Construction: BIM data directly drives fabrication

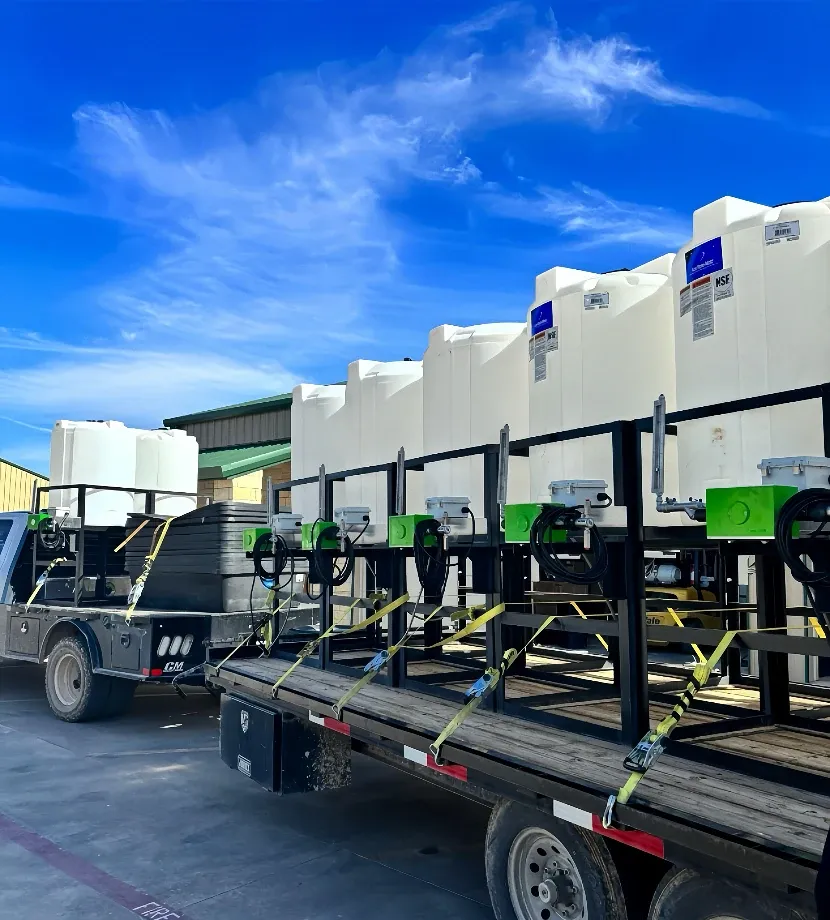

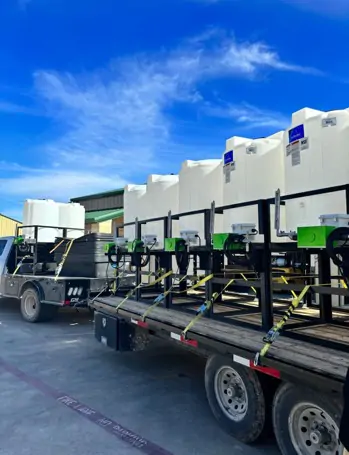

Application Areas of Sheet Metal Fabrication
1. Core Industrial Sectors
Machinery & Equipment: Protective covers, frames, control cabinets, production line components.
Automotive Manufacturing: Body structural parts, chassis components, battery trays, interior frames.
2. Electronics & Infrastructure
Communications & Data Centers: 5G base station housings, server cabinets, network enclosures.
Energy & Environmental Protection: Photovoltaic brackets, energy storage cabinets, housings for air purifiers and water treatment equipment.
3. Construction & Public Facilities
Architectural Decoration: Metal curtain walls, interior ceilings, custom metal furniture, and art installations.
Public Facilities: Bus shelters, smart parcel lockers, public signage, and guardrails.
4. High-Tech & Specialized Fields
Aerospace: Aircraft interior parts, equipment bays, satellite components.
Medical Devices: CT/MRI equipment housings, surgical equipment frames, medical carts, and hospital beds.
Special Applications: Security equipment, ship interiors, food processing equipment.
Check Out the Toolkit
Core Guide to Material Selection for Sheet Metal Fabrication
I. Comparison of Common Materials
Carbon Steel
1. Cold Rolled Sheet (SPCC): Lowest cost, easy to process, requires surface rust prevention. Suitable for cabinets and internal structural parts.
2. Galvanized Sheet (SECC): Built-in rust prevention layer, good appearance. Used for outdoor chassis and electrical enclosures.
Stainless Steel
1. 304 Stainless Steel: Corrosion-resistant, easy to form, most versatile. Used for food equipment, medical devices, and architectural decoration.
2. 316 Stainless Steel: Stronger resistance to acid and alkali corrosion, suitable for harsh environments like chemical and marine applications.
3. 430 Stainless Steel: Magnetic, lower cost, used for general structures in dry environments.
Aluminum & Alloys
1. 5052 Aluminum: Good formability, corrosion-resistant, commonly used for electronic enclosures and vehicle interiors.
2. 6061 Aluminum: High strength, suitable for load-bearing structures, but with average formability.
3. 3003 Aluminum: Best formability, ideal for deep drawing, used for kitchenware and lighting fixtures.
II. Five Key Factors for Material Selection
Functionality: Strength, corrosion resistance, weight, electrical/thermal conductivity requirements.
Process Compatibility: Whether the material is suitable for intended bending, welding, and surface treatment processes.
Cost: Comprehensive consideration of material cost, processing cost, and post-treatment cost.
Appearance: Need for specific colors, textures, or surface finishes.
Industry Standards: Specific material regulations for industries like food/medical, construction, and automotive.
III. Suggested Material Selection Process
Define the core product requirements (strength, corrosion resistance, budget, etc.).
Preliminary selection of material category (steel/stainless steel/aluminum).
Evaluate compatibility with manufacturing processes.
Calculate total cost and lead time.
Finalize after confirming material availability with the fabricator.
Surface Finishing for Sheet Metal Fabrication

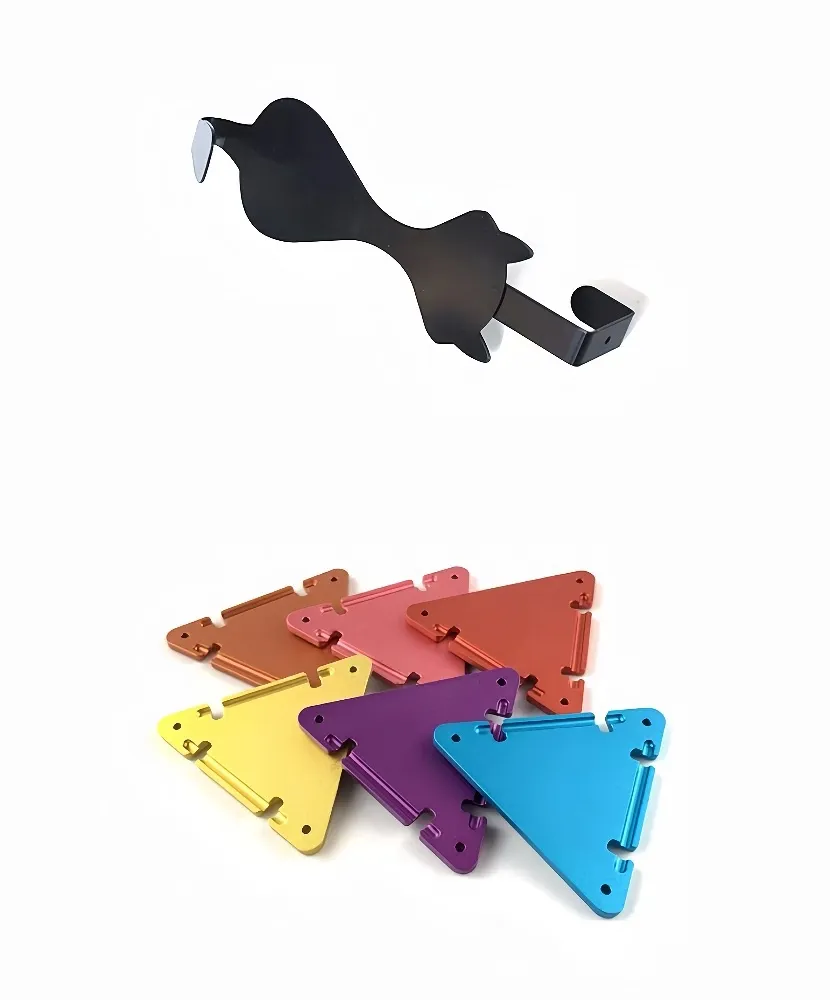

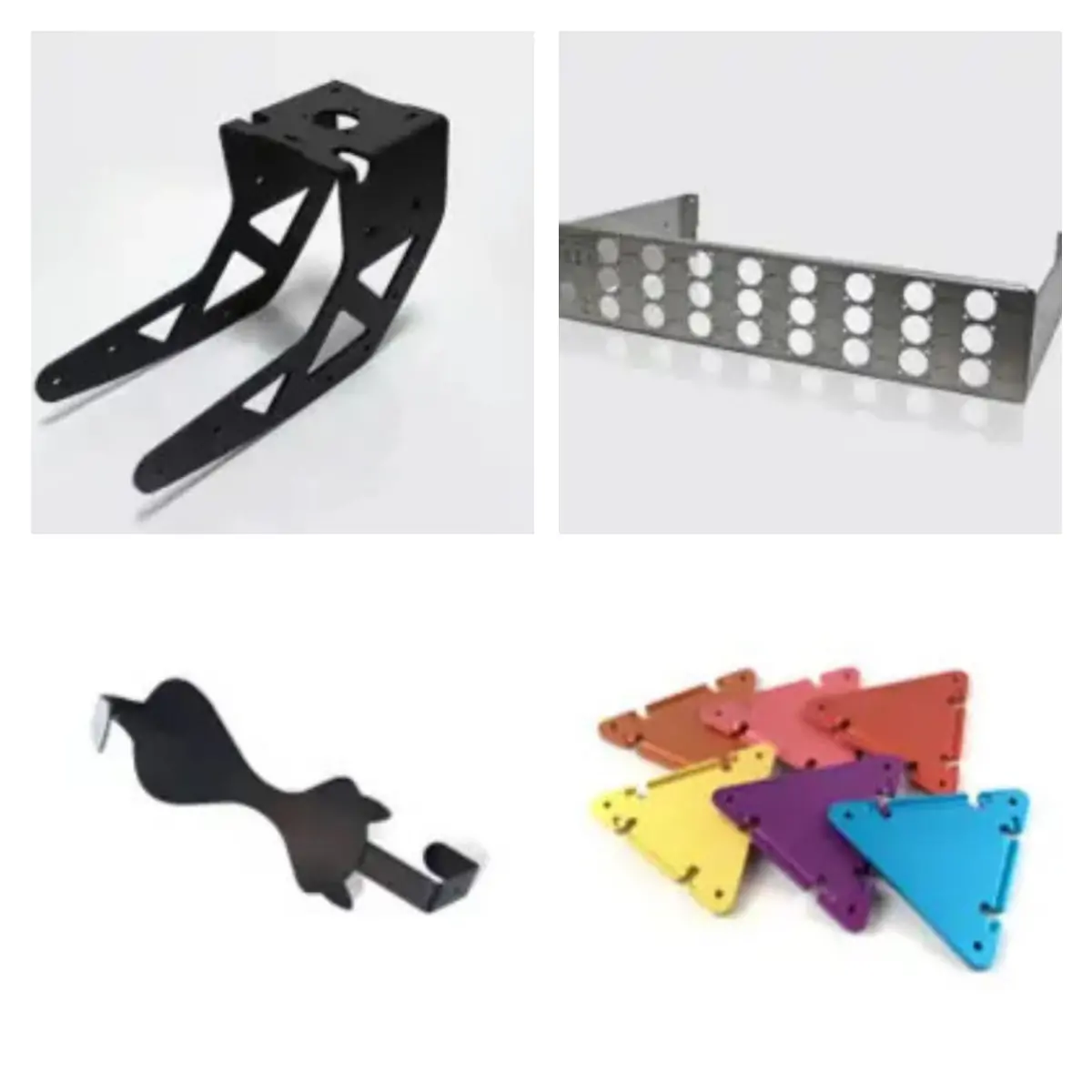

I. Primary Finishing Processes
Powder Coating
Purpose: Corrosion/wear resistance, wide color & texture options.
Best for: Cabinets, industrial enclosures, general parts.
Plating (Zinc/Nickel/Chrome)
Purpose: Corrosion resistance, wear resistance, metallic sheen.
Best for: Fasteners, hardware, conductive/reflective parts.
Anodizing (for Aluminum)
Purpose: Enhances corrosion/wear resistance, allows coloring.
Best for: Consumer electronics, high-end decorative parts.
Brushing & Polishing
Purpose: Decorative texture (brushed) or mirror finish (polished).
Best for: Elevator interiors, appliance panels, signage (stainless steel/aluminum).
Conversion Coating (Phosphating, Passivation)
Purpose: Improves paint adhesion & provides short-term rust prevention (often a pre-treatment).
Best for: Base layer before painting or plating.
II. Key Selection Factors
Corrosion Needs: Match the process to the environment (e.g., powder coat for outdoors).
Aesthetic Goals: Choose based on desired color, texture, or metallic look.
Base Material: Steel requires corrosion protection; aluminum is ideal for anodizing.
Functional Needs: Consider requirements like conductivity, insulation, or wear resistance.
Cost & Volume: Balance process cost with production quantity.
III. Application Recommendations
Outdoor Enclosures: Galvanized steel + outdoor powder coat.
Data Center Racks: Cold-rolled steel + phosphating + powder coat (black).
Medical/Food Equipment: Stainless steel + electropolishing/passivation.
Consumer Electronics: Aluminum + anodizing.
Architectural Cladding: Aluminum sheet + PVDF coating.
Check Out the Toolkit
Sheet Metal Fabrication (FAQs)
What is sheet metal fabrication?
expand_less expand_moreA: It is a manufacturing process that transforms metal sheets into structural parts or products through cutting, bending, stamping, welding, and other techniques.
What are the most common sheet metal materials?
expand_less expand_moreA: Mainly cold-rolled steel, stainless steel (e.g., 304/316), and aluminum alloys (e.g., 5052/6061), selected based on strength, corrosion resistance, and cost requirements.
What are the advantages of laser cutting?
expand_less expand_moreA: High precision, fast cutting speed, suitable for complex shapes, with a small heat-affected zone, ideal for thin to medium-thick plates.
What are key considerations in the bending process?
expand_less expand_moreA: Bending allowance and springback compensation must be calculated, and appropriate dies and pressure selected to avoid cracking or angular deviation.
What welding methods are commonly used in sheet metal fabrication?
expand_less expand_moreA: Common methods include TIG welding, resistance spot welding, and laser welding, chosen based on material thickness, appearance requirements, and strength needs.
How to improve the corrosion resistance of sheet metal parts?
expand_less expand_moreA: Achieved through surface treatments such as powder coating (cost-effective), zinc plating (enhanced protection), or passivation of stainless steel (preserves appearance).
What is a CNC turret punch press?
expand_less expand_moreA: It is an automated stamping device that uses multiple tools to quickly perform punching and forming operations, ideal for batch production of parts with patterned holes.
What are key points to note in sheet metal design?
expand_less expand_moreA: Follow "Design for Manufacturability" principles, such as avoiding excessively small bend radii, allowing tool clearance, and specifying clear tolerances and hole positions.
How to reduce the cost of sheet metal fabrication?
expand_less expand_moreA: Optimize nesting to minimize waste, select standard sheet sizes, simplify process steps, and use die-forming for mass production.
What are future trends in sheet metal fabrication?
expand_less expand_moreA: Moving toward smart and flexible manufacturing, including robotic automation lines, hybrid 3D printing processes, and full digital workflow management.
