Packaging Solution for Hardware & Plastic Processed Products (Core Content)

I. Tiered Packaging Structure (Inside-Out)

A robust packaging design employs multiple protective layers:

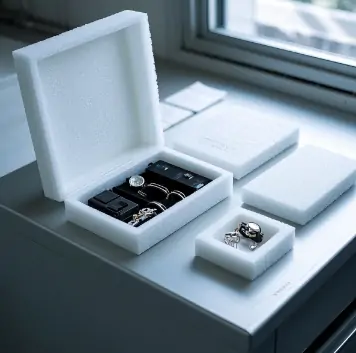

Tier 1-Inner Packaging / Unit Protection

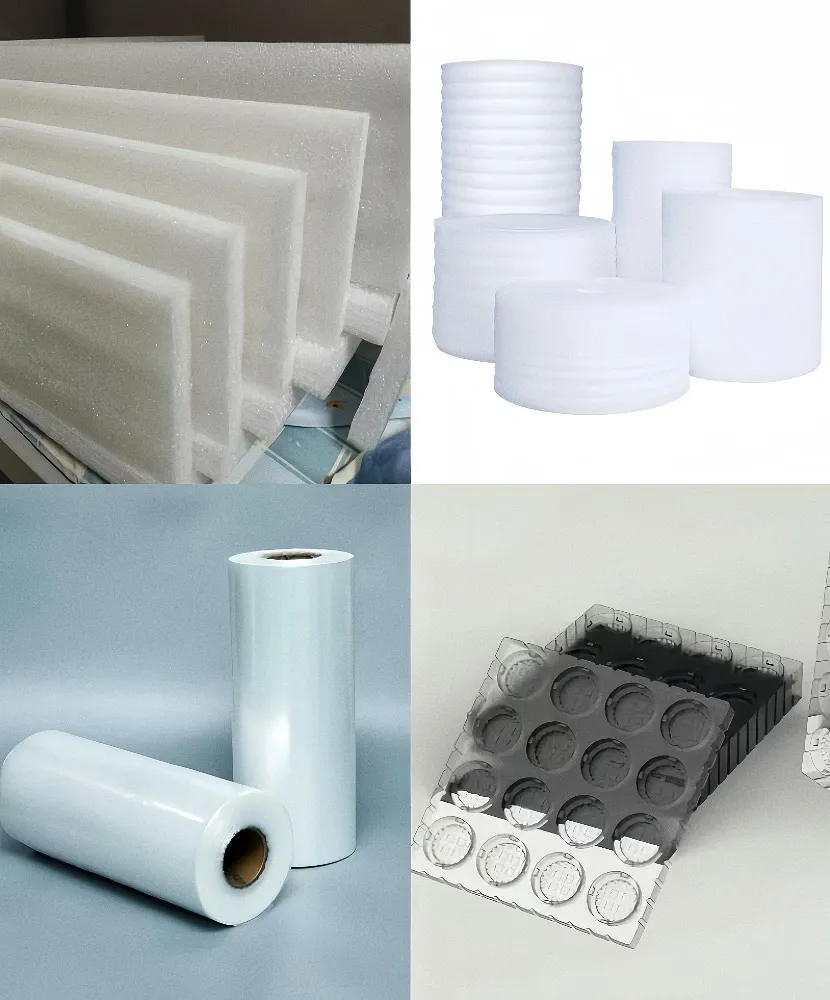

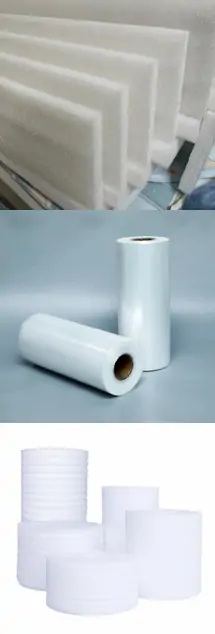

Common Materials & Methods: PE bag / Bubble bag / Anti-static bag / Blister tray / Foam insert / Stretch wrap

Purpose: Prevent surface scratches, part-to-part contact, moisture, oxidation, or ESD.

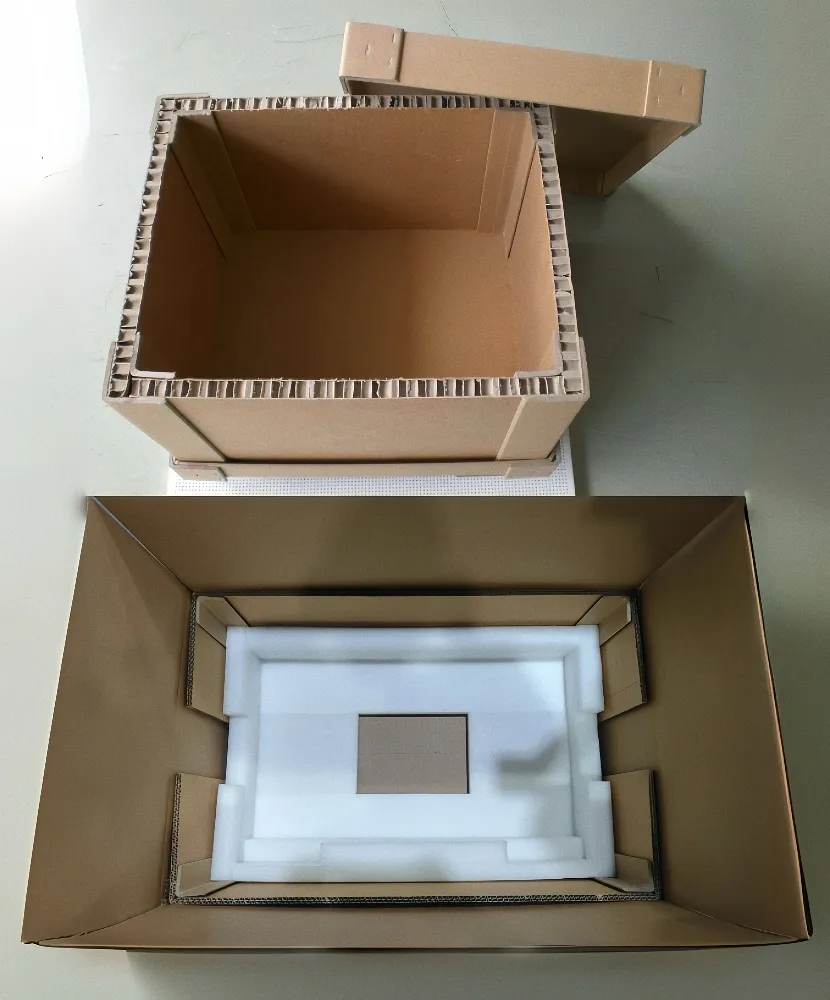

Tier 2-Inner Carton / Internal Separation

Common Materials & Methods: Cardboard dividers, Corrugated inserts, Foam partitions

Purpose: Secure product position within the outer case, prevent movement and collision.

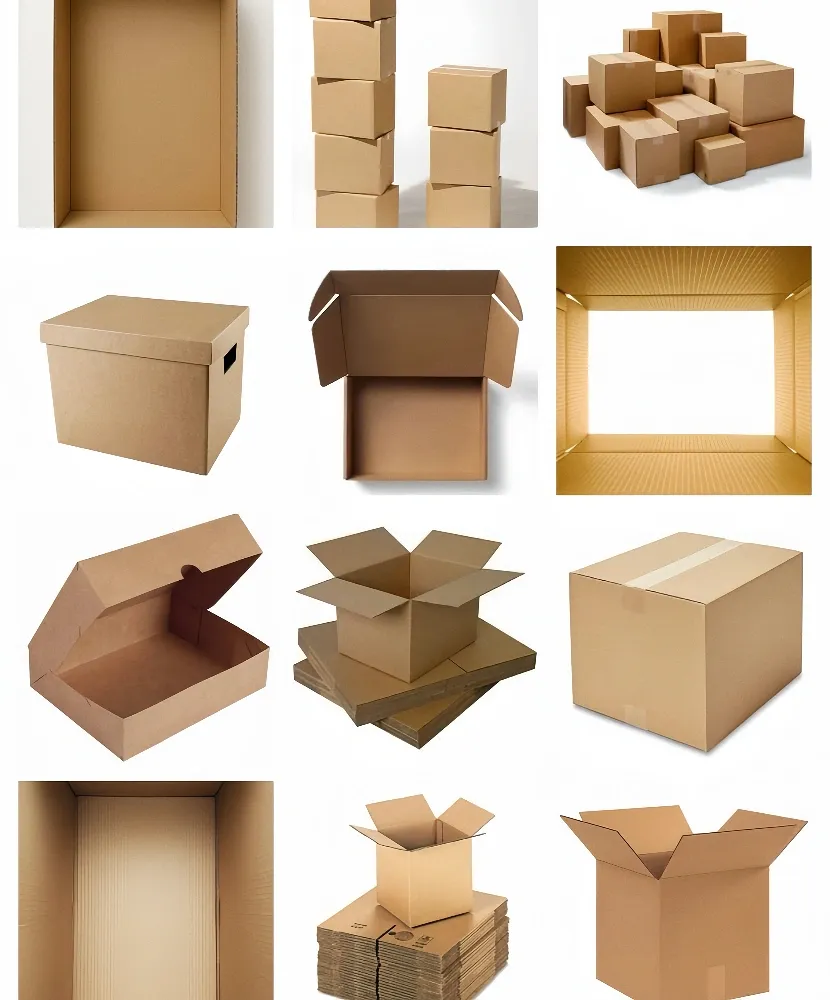

Tier 3-Master Shipping Carton

Common Materials & Methods: Corrugated carton (common 3-ply/5-ply, K=A or A=A flute)

Purpose: Provide primary structural support and stacking strength. Bear identification marks.

Tier 4-External Reinforcement & Protection

Common Materials & Methods: Strapping (PP/PET), Stretch wrap, Edge protectors, Waterproof film

Purpose: Prevent carton bursting, moisture ingress, enhance unit load integrity, and facilitate mechanical handling.

II. Standard Packaging Procedure

1. Cleaning & Verification: Ensure products are clean, free of oil/contaminants, and have passed QC. Verify product matches order information.

2. Unit Protection:

For precision hardware, plated, or polished surfaces: Use anti-scratch materials (e.g., individual PE/bubble bags).

For precision plastic or electronic components: Consider ESD-protective packaging.

For loose parts like screws: Use resealable bags placed inside small boxes.

3. Quantitative Inner Packing:

Place protected units into inner boxes or partitioned slots in specified quantities (e.g., per 50/100 pcs).

Use full dividers between each layer.

4. Master Carton Sealing:

Place a bottom pad in the carton (optional).

Neatly pack inner boxes/partitioned units into the master carton. Fill voids with dunnage (air pillows, crumpled paper) to prevent movement.

Place the Packing List on top.

Close the carton flaps and seal securely using quality packing tape (H-pattern or工-shaped sealing method).

5. External Reinforcement & Marking:

For heavy cartons (e.g., >15 kg), reinforce with strapping bands (horizontal and vertical).

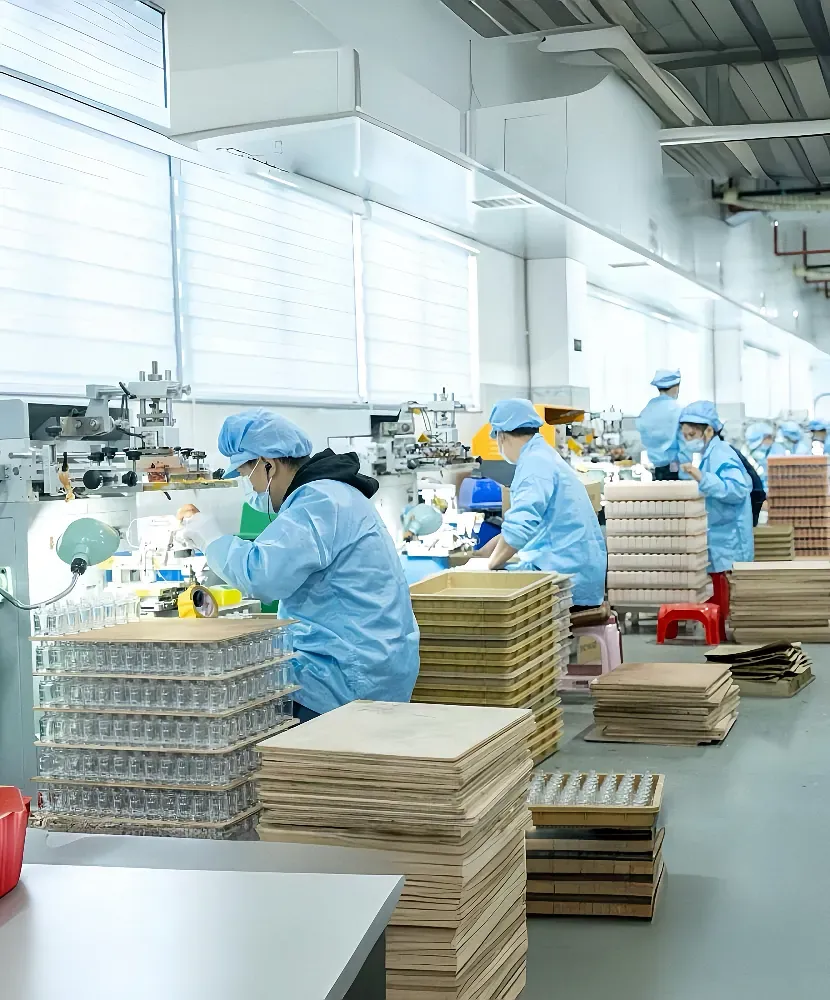

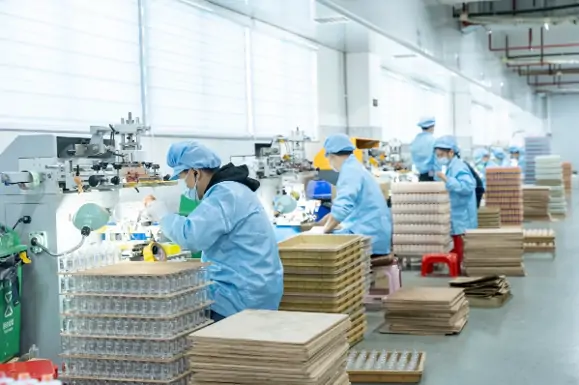

Quality Control and Validation of the Packaging Process

Packaging itself is the final step of production and must undergo quality control.

First-Pack Confirmation:

Before mass packaging begins for each batch, the first completed finished carton must be inspected and approved by quality control (IPQC or OQC). Checks include: packaging method, material usage, protective measures, label accuracy, packed quantity, and a comparison against the customer-approved packaging sample.

In-Process Spot Checks:

On the packaging line, inspectors must periodically sample-check: product cleanliness, proper internal packaging, sufficient void fill, carton integrity, and correct label placement.

Reliability Validation Testing (Critical):

For new products or key customers, packaging transport testing should be conducted before mass production to validate the packaging design. Common tests include:

Drop Test: Simulates accidental drops during handling.

Vibration Test: Simulates sustained vibrations during truck or ship transport.

Compression/Stacking Test: Verifies the carton’s crush resistance during prolonged warehouse stacking.

Environmental Test: e.g., temperature/humidity cycling to verify moisture protection effectiveness.a

Packaging Process Quality Control and Validation Plan

I. Core Objectives of Quality Control

Zero Defect Outflow: Ensure products with improper packaging (e.g., wrong, missing, damaged, dirty) do not flow to the next stage or reach the customer.

Process Stability: Reduce variability in the packaging process through standardized operations and monitoring.

Traceability: Enable any packaging issue to be traced back to the specific operator, production line, batch, and materials.

Compliance: 100% fulfillment of customer-specific packaging specifications and internal quality standards.

II. Quality Control Organization and Responsibilities

IPQC (In-Process Quality Control): Responsible for ongoing patrol inspections and sampling checks on the packaging line.

OQC (Outgoing Quality Control): Responsible for final sampling inspection and release of packaged finished goods.

Packaging Lead/Supervisor: Responsible for first-article confirmation, operation supervision, and initial problem handling.

Operator: Responsible for self-inspection and the quality of their own work.

III. Quality Control Activities (Four-Stage Monitoring)

IV. Key Supporting Documents & Tools

Packaging Work Instruction (PWI): Illustrated, serves as the sole standard for all operations.

Packaging Inspection Standard: Clearly defines pass/fail criteria for each check point, supported by photo examples.

Approved Carton / Limit Samples: Includes "perfect standard samples" and "acceptable/unacceptable" limit samples.

Inspection Record Forms: First-article confirmation form, patrol inspection log, OQC report, etc., ensuring traceability.

Measuring Tools: Electronic scale, calipers, tape measure, tape adhesion tester, etc.

V. Non-Conforming Product Handling Process

Identification & Segregation: Immediately move non-conforming packaged goods to the "Quarantine Area" with a red tag.

Evaluation & Disposition: Evaluated by a Quality Engineer to decide on rework (repackaging), scrap (material damaged), or concession (minor defect).

Root Cause Analysis & Improvement: For repetitive or critical issues, initiate root cause analysis and implement corrective/preventive actions.

Quality Control Activities (Four-Stage Monitoring)

Stage 1: Pre-Production Preparation Control

1. Document Verification: Packaging instructions, customer-specific requirements, drawings/samples must be the latest version and complete.

2. Material Verification (IQC for Packaging):

Verify the specifications, material, dimensions, and printed content of packaging materials (cartons, liners, plastic bags, etc.).

Check incoming materials for moisture damage, breakage, contamination, etc.

Critical materials (e.g., anti-static bags, rust-proof materials) require supplier quality certificates.

Stage 2: In-Process Execution Control (Core)

1. First-Article Confirmation System:

When: At the start of each shift, after product/packaging material changeover, or after equipment adjustment.

Method: Conducted jointly by the Packaging Lead and IPQC.

Content: Completely package one minimum unit (e.g., one inner box or one master carton). Check item-by-item against the Packaging Inspection Standard and approved samples, and record on the First-Article Confirmation Form. Once approved, this unit serves as the "standard sample" for the shift at the line head.

2. Operator Self-Inspection (100% Check):

Content: Each operator is responsible for their own station. Examples: bagging operator checks product cleanliness; boxing operator checks quantity and placement; sealing operator checks carton integrity.

Method: Follow the Packaging Self-Inspection Checklist, recording results every half hour.

3. IPQC Scheduled Patrol Inspection (AQL Sampling):

3.1 Frequency: Every 1-2 hours.

3.2 Sampling: Randomly select a specified quantity of semi-finished goods (e.g., packed inner boxes) and finished cartons from the packaging line.

3.3 Inspection Items (Example):

Product Condition: Cleanliness, mixed products, undetected defective parts

Inner Packaging: Whether bag is sealed, correct anti-static/rust-proof measures, sufficient bubble wrap coverage

Intermediate Packaging: Accurate quantity, correct placement, proper use of dividers, sufficient void fill

Outer Packaging: Carton undamaged, correct carton grade, sealing tape applied properly and firmly, correct banding position and tension

Labels & Markings: Accurate, clear, and firmly affixed carton marks; uniform placement; correct warning symbols

Weight Verification: Random weighing compared to standard weight; quickly identifies serious under/over packing or wrong parts

3.4 Records: Results recorded on the Packaging Process Patrol Inspection Record. Issues trigger immediate issuance of a Corrective and Preventive Action Form.

Stage 3: Final Finished Goods Verification

1. OQC Outgoing Inspection (AQL Standard Sampling):

For finished, ready-to-ship cartons, sample according to MIL-STD-105E or customer-specified standards.

Inspection covers appearance, markings, packaging method, quantity, and simulated post-transport condition (random cartons may be opened to check inner layers).

Goods can only be released after passing OQC inspection and stamping/sign-off.

2. Weight Audit:

Weigh each finished pallet and compare it to the system’s theoretical weight. Serves as a final defense against major quantity errors.

Stage 4: Periodic System Validation

1. Packaging Transport Testing (Most Critical Validation):

Purpose: Simulate real logistics environments to scientifically verify the reliability of the packaging solution.

Frequency: Before implementing a new packaging solution, after major material/design changes, periodically (e.g., annually).

Test Items (Based on ISTA or GB/T Standards):

Drop Test: Verifies protection against accidental drops.

Vibration Test: Verifies protection against sustained vibration during transit.

Compression/Stacking Test: Verifies carton crush resistance during warehousing.

Incline/ Horizontal Impact Test: Simulates vehicle braking or collisions.

Result: After testing, open cartons to inspect product and inner packaging integrity. Issue a formal Packaging Transport Test Report.
